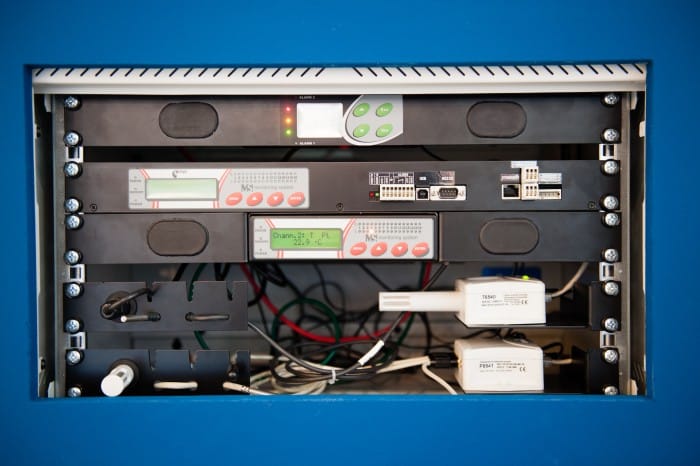

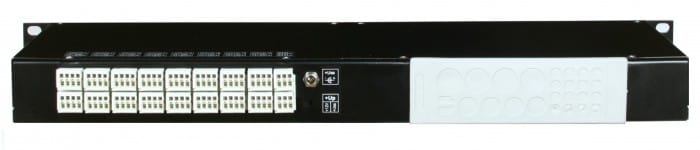

Sixteen Channel Data Logger for 19" Rack with Alarms

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Universal configurable inputs and outputs. For mounting to 19" rack - one rack unit 1U. Enables to build in the optional MP050 output relays module with 16 relays - see Optional accessories.

Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.

The device includes traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO / IEC 17025. The calibration sheet is always loaded as modules.
If the defined required configuration of inputs by, calibration certificate proves calibration inputs according to the required configuration - more than one range for each of the 16 inputs.

  • code
    MS6-Rack
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Current
Voltage
Two-state signal
Frequency
Resistance
Event logging

GENERAL TECHNICAL DATA

Operating temperature 0 to +50 °C
Channels 1 to 16 inputs - software configurable
Memory 2MB (up to 480 000 values)
Memory type internal SRAM, backed-up by Lithium battery
Recording interval adjustable individually for all input channels from 1 second to 24 hours
Recording interval noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second, backed-up by Lithium battery
Resolution of the AD converter (analog channels) 16 bits, conversion duration approximately 60ms/channel
Communication speed 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)
Power 24 Vdc
Protection class IP20
Rozměry 483 x 190 x 44 mm - one rack unit 1U
Weight approx. 800 g
Warranty 3 years

Features

Device enables:

  • to measure and process 1 to 16 input signals
  • to acquire autonomous time record of measured values
  • create alarm states
  • to perform other actions based on created alarms (audible, visual indication, controlling of relay outputs, sending SMS message, controlling of telephone dialer, sending of messages via several protocols of the Ethernet interface etc.)
  • to monitor on-line measured values and states
  • independent hysteresis setting, delay (for each channel separately)
  • setting up to four alarm conditions (for each channel separately)

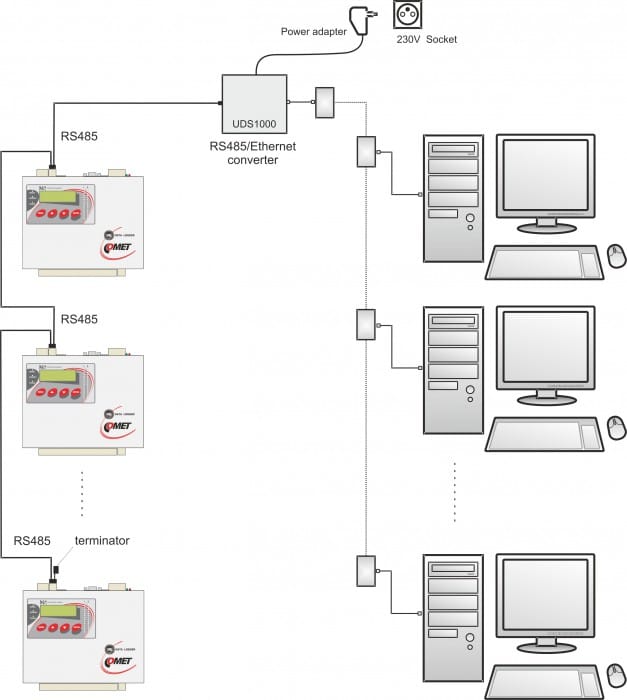

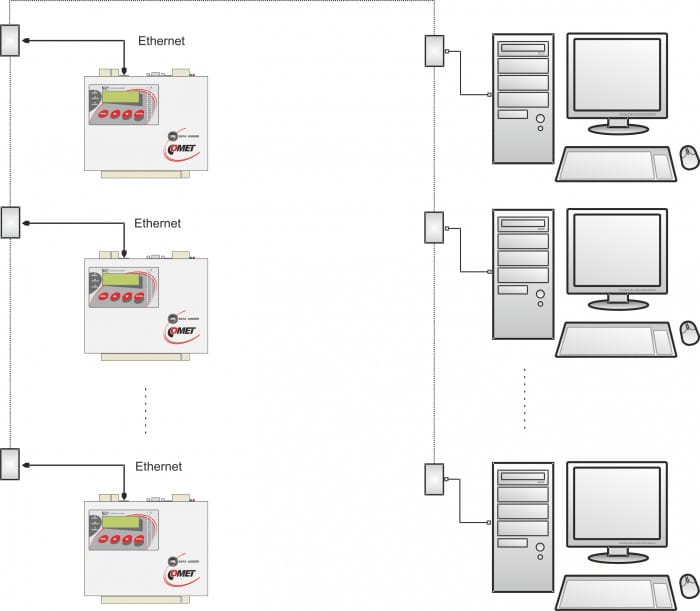

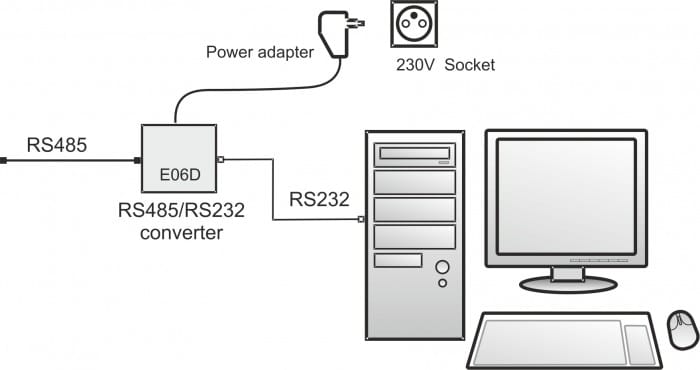

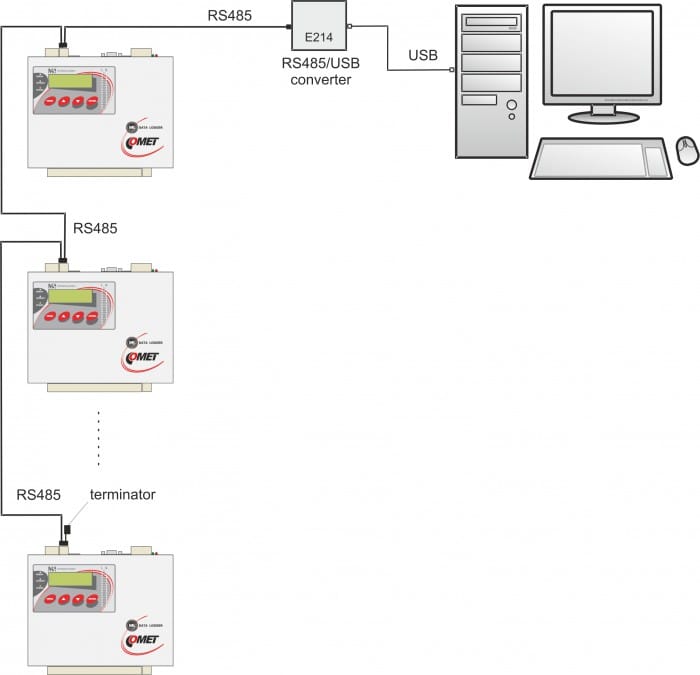

Common connectivity options:

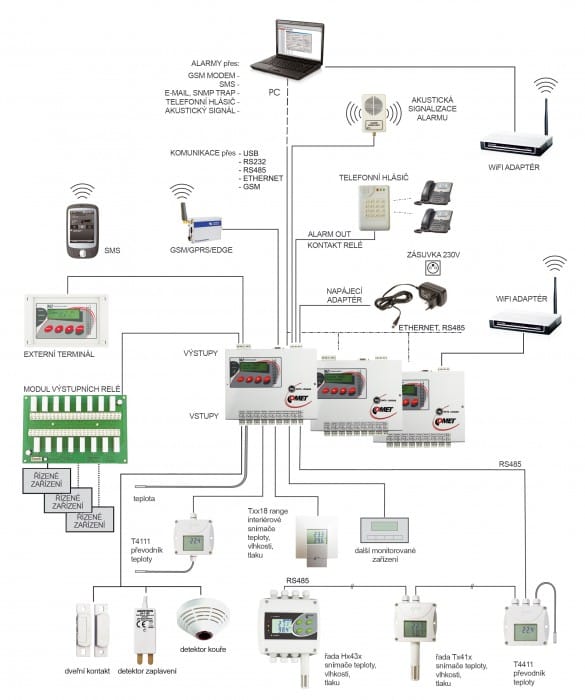

Monitoring system MS may be configured for almost any desired measurement application. Sensors can be wired to datalogger in star-like connection as well as in serial. Combination of both is also possible. The monitoring system MS is characterized by a wide range of communication interfaces such as the RS232, RS485, USB, Ethernet and GSM or GPRS modem. Thanks to Wi-Fi routers several measuring systems MS can be wirelessly connected to a network.

Parameters and measuring ranges of configurable inputs MS6D

The monitoring systems MS6xx is equipped with 16 freely programmable universal inputs. Each of them can be set to the input signal according to the table below. The monitoring system is thus very flexible and offers ease of use. The RS485 input must be ordered separately if you want to use the Modbus or Advantech communication interface.

Main features:

  • software configurable inputs for temperature sensors Pt and Ni, thermocouples and thermistors, voltage and current, two-state events, resistance, sensors with RS485 output
  • memory for 500 000 records with automatic downloading to PC
  • alarm indication via integrated siren, e-mail, SMS and two-state output to control other devices
  • software for data analysis on PC
  • communication interface USB, RS232, relays, RS485 (Modbus RTU), ETHERNET (Modbus TCP, SOAP, etc.)

Optional accessories and download

Power/Backup adapters

Ac/dc adapter 21V/1A/25W unstabilized

Ac/dc adapter 21V/1A/25W unstabilized

code A1759
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

code A1940
Power supply 24Vdc for DIN 35mm rail

Power supply 24Vdc for DIN 35mm rail

code A5948
Uninterruptible power supply MIN-DC-UPS/24VDC/2

Uninterruptible power supply MIN-DC-UPS/24VDC/2

code A6963
Rechargeable battery module MINI-BAT/24DC/1,3AH

Rechargeable battery module MINI-BAT/24DC/1,3AH

code A7963
DIN rail 35mm/226mm lenght with screws

DIN rail 35mm/226mm lenght with screws

code MP035
Uninterruptible power supply unit AWZ 224

Uninterruptible power supply unit AWZ 224

code A6966
Rechargeable hermetic battery 12V/7,2Ah

Rechargeable hermetic battery 12V/7,2Ah

code A7966

Communication/convertors

Ethernet communication port (internal) for MS6R, MS6D

Ethernet communication port (internal) for MS6R, MS6D

code MP042
Converter USB/RS485 for MS5

Converter USB/RS485 for MS5

code MP022
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

code MP023
RS232 connector with terminals

RS232 connector with terminals

code MP030
Galvanically isolated input for MS data loggers for serial RS485 signal

Galvanically isolated input for MS data loggers for serial RS485 signal

code RS485IN

GSM/Wi-Fi communication

GPRS/EDGE router ER75i RS232 set

GPRS/EDGE router ER75i RS232 set

code MP052
KIT-GSM with modem GSM

KIT-GSM with modem GSM

code KIT-GSM-M

External display

Terminal with display for MS55, MS6

Terminal with display for MS55, MS6

code MP016
External terminal for MS6x and MS55D dataloggers with housing and cable

External terminal for MS6x and MS55D dataloggers with housing and cable

code MP032
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10

Relay module

Output relays module

Output relays module

code MP050

Other accessories

Ac/dc adapter 21V/1A/25W unstabilized

Ac/dc adapter 21V/1A/25W unstabilized

code A1759
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

code A1940
Power supply 24Vdc for DIN 35mm rail

Power supply 24Vdc for DIN 35mm rail

code A5948
Uninterruptible power supply MIN-DC-UPS/24VDC/2

Uninterruptible power supply MIN-DC-UPS/24VDC/2

code A6963
Uninterruptible power supply unit AWZ 224

Uninterruptible power supply unit AWZ 224

code A6966
Rechargeable battery module MINI-BAT/24DC/1,3AH

Rechargeable battery module MINI-BAT/24DC/1,3AH

code A7963
DIN rail 35mm/226mm lenght with screws

DIN rail 35mm/226mm lenght with screws

code MP035
Rechargeable hermetic battery 12V/7,2Ah

Rechargeable hermetic battery 12V/7,2Ah

code A7966
Galvanically isolated input for MS data loggers for serial RS485 signal

Galvanically isolated input for MS data loggers for serial RS485 signal

code RS485IN
Ethernet communication port (internal) for MS6R, MS6D

Ethernet communication port (internal) for MS6R, MS6D

code MP042
Converter RS232/RS485 with ac/dc adapter for MS5

Converter RS232/RS485 with ac/dc adapter for MS5

code MP021
Converter USB/RS485 for MS5

Converter USB/RS485 for MS5

code MP022
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

code MP023
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Output relays module

Output relays module

code MP050
Terminal with display for MS55, MS6

Terminal with display for MS55, MS6

code MP016
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
External terminal for MS6x and MS55D dataloggers with housing and cable

External terminal for MS6x and MS55D dataloggers with housing and cable

code MP032
GSM modem without accessories for MS data loggers

GSM modem without accessories for MS data loggers

code MP009
Antenna for GSM modem

Antenna for GSM modem

code MP009/1
Communication cable for GSM modem

Communication cable for GSM modem

code MP009/2
RS232 connector with terminals

RS232 connector with terminals

code MP030
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
The LD-12 flood detector

The LD-12 flood detector

code LD12
The optical smoke detector SD-283ST

The optical smoke detector SD-283ST

code SD280
Motion detector JS20

Motion detector JS20

code JS20
Power detector SP008

Power detector SP008

code SP008
Screwdriver for WAGO terminals 3.5mm

Screwdriver for WAGO terminals 3.5mm

code MP031

Temperature Probes

Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Temperature probe Pt1000TG68/0, without connector, cable 1 meter

Temperature probe Pt1000TG68/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN251
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
code SN247
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214
Thermocouple "K" wire probe, GD260, with connector

Thermocouple "K" wire probe, GD260, with connector

Temperature range: -65 to 260°C
code GD260-1
Thermocouple "K" wire probe, GD700, with connector

Thermocouple "K" wire probe, GD700, with connector

Temperature range: -65 to 700°C
code GD700-1
Thermocouple "K" wire probe, GD1250, with connector

Thermocouple "K" wire probe, GD1250, with connector

Temperature range: -65 to 980°C
code GD1250-1
Thermocouple "K" surface probe, CP500

Thermocouple "K" surface probe, CP500

Temperature range: -65 to 500°C
code CP500
Thermocouple "K" stick-in probe, CZ550

Thermocouple "K" stick-in probe, CZ550

Temperature range: -65 to 550°C
code CZ550
Thermocouple "K" stick-in probe, CZ900

Thermocouple "K" stick-in probe, CZ900

Temperature range: -65 to 1000°C
code CZ900
Thermocouple "K" insertion probe, GT1150

Thermocouple "K" insertion probe, GT1150

Temperature range: -50 to 1150°C
code GT1150
Extension cable thermocouple "K"

Extension cable thermocouple "K"

code SNP03
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0

code

Monitoring software

Comet Database

Comet Database

code CDB
Software for COMET Monitoring Systems

Software for COMET Monitoring Systems

code SWR003

Software

download-icon SWR003 (MSPlus 4.0.36.0 dbapi 20.0)
60.71 MB
download-icon Comet Database One Click Installer (20.0-IV)
325.43 MB
download-icon Database Viewer 3.14.0.0 dbapi 20.0
22.17 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual - basic
2.36 MB
download-icon Instruction Manual - appendix
3.08 MB
download-icon Declaration of Conformity
61.42 KB
download-icon MIB
540.52 KB
download-icon Configurable inputs for MS6xx
581.65 KB
download-icon Monitoring System setup wizard step by step - powerpoint
3.84 MB

Catalogs

download-icon CATALOG - Monitoring Systems
6.22 MB

Related products

Comet Database

Comet Database

code CDB
Software for COMET Monitoring Systems

Software for COMET Monitoring Systems

code SWR003
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6D
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6R
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS55D
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Reference

Monitoring of temperature and humidity of storage areas with food and veterinary preparations for dogs and cats

Monitoring of temperature and humidity of storage areas with food and veterinary preparations for dogs and cats

Type of application: Industry Building Management - HVAC

24/7 monitoring with MS6D

24/7 monitoring with MS6D

Type of application: Industry Building Management - HVAC

System of monitoring for IKEA Hungary

System of monitoring for IKEA Hungary

Type of application: Industry Building Management - HVAC

Restoring the original tempering hot-air heating system, Chateau Lednice

Restoring the original tempering hot-air heating system, Chateau Lednice

Type of application: Building Management - HVAC Culture

The Cairn of Peace Memorial

The Cairn of Peace Memorial

Type of application: Building Management - HVAC Culture

Cryogenic storage facility for SATVI

Cryogenic storage facility for SATVI

Type of application: Industry Healthcare and Laboratory

Blood Bank Upgrade

Blood Bank Upgrade

Type of application: Healthcare and Laboratory

CHIL Lab Cape Town

CHIL Lab Cape Town

Type of application: Healthcare and Laboratory

Measurement of runoff wastewater treatment plant

Measurement of runoff wastewater treatment plant

Type of application: Healthcare and Laboratory Agriculture

CO2 sensors use in ventilation control

CO2 sensors use in ventilation control

Type of application: SOHO (Small Office and Home Office) Building Management - HVAC Culture

HELUZ - great bricks for your house

HELUZ - great bricks for your house

Type of application: Industry Building Management - HVAC

Humidity monitoring in family houses

Humidity monitoring in family houses

Type of application: Building Management - HVAC

Prague Castle

Prague Castle

Type of application: Building Management - HVAC Server rooms and data centers Culture

Dr. Müller Pharma in Hradec Kralove, Drug Store

Dr. Müller Pharma in Hradec Kralove, Drug Store

Type of application: Industry Healthcare and Laboratory

Masaryk University in Brno

Masaryk University in Brno

Type of application: Industry Building Management - HVAC

Drazice farm

Drazice farm

Type of application: Industry

MS6 Online Demo
