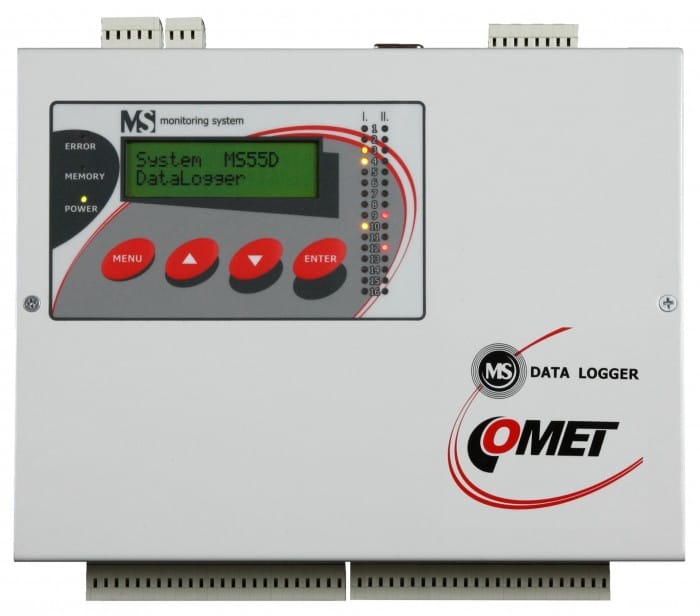

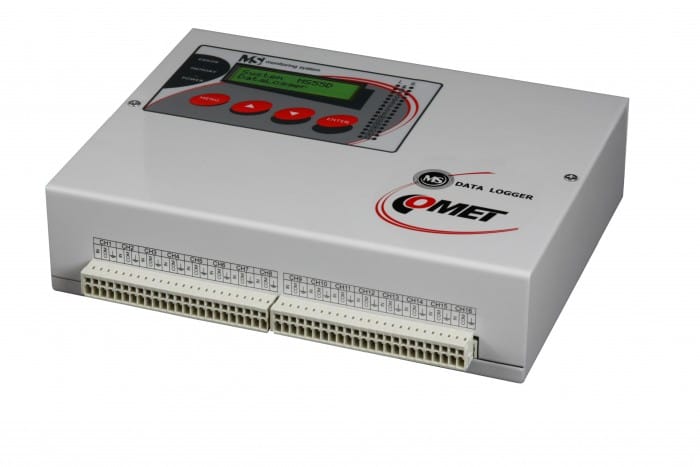

Sixteen Channel Data Logger with Alarms

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Configurable inputs and outputs.

Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.

The device includes traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO / IEC 17025. The calibration sheet is always loaded as modules.
If the defined required configuration of inputs by, calibration certificate proves calibration inputs according to the required configuration - more than one range for each of the 16 inputs.

  • code
    MS55D
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Current
Voltage
Two-state signal
Pulses
Frequency
Resistance
Event logging

GENERAL TECHNICAL DATA

Operating temperature 0 to +50 °C
Channels 1 to 16 hardware modules
Memory 2MB (up to 480 000 values)
Memory type internal SRAM, backed-up by Lithium battery
Recording interval adjustable individually for all input channels from 1 second to 24 hours
Recording interval noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second, backed-up by Lithium battery
Resolution of the AD converter (analog channels) 16 bits, conversion duration approximately 60ms/channel
Communication speed 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)
Power 9 to 30Vdc, 24Vdc recommended
Protection class IP20
Dimensions (including connectors) 215 x 225 x 60 mm
Weight approx. 800 g
Warranty 3 years

Reference

Monitoring of concrete temperature during aging

Monitoring of concrete temperature during aging

Type of application: Industry

Mushroom growing technology

Mushroom growing technology

Type of application: Industry Agriculture

24/7 monitoring with MS6D

24/7 monitoring with MS6D

Type of application: Industry Building Management - HVAC

System of monitoring for IKEA Hungary

System of monitoring for IKEA Hungary

Type of application: Industry Building Management - HVAC

Restoring the original tempering hot-air heating system, Chateau Lednice

Restoring the original tempering hot-air heating system, Chateau Lednice

Type of application: Building Management - HVAC Culture

The Cairn of Peace Memorial

The Cairn of Peace Memorial

Type of application: Building Management - HVAC Culture

Cryogenic storage facility for SATVI

Cryogenic storage facility for SATVI

Type of application: Industry Healthcare and Laboratory

Blood Bank Upgrade

Blood Bank Upgrade

Type of application: Healthcare and Laboratory

CHIL Lab Cape Town

CHIL Lab Cape Town

Type of application: Healthcare and Laboratory

Measurement of runoff wastewater treatment plant

Measurement of runoff wastewater treatment plant

Type of application: Healthcare and Laboratory Agriculture

CO2 sensors use in ventilation control

CO2 sensors use in ventilation control

Type of application: SOHO (Small Office and Home Office) Building Management - HVAC Culture

HELUZ - great bricks for your house

HELUZ - great bricks for your house

Type of application: Industry Building Management - HVAC

Humidity monitoring in family houses

Humidity monitoring in family houses

Type of application: Building Management - HVAC

Prague Castle

Prague Castle

Type of application: Building Management - HVAC Server rooms and data centers Culture

Dr. Müller Pharma in Hradec Kralove, Drug Store

Dr. Müller Pharma in Hradec Kralove, Drug Store

Type of application: Industry Healthcare and Laboratory

Masaryk University in Brno

Masaryk University in Brno

Type of application: Industry Building Management - HVAC

Drazice farm

Drazice farm

Type of application: Industry

Features

Device enables:

  • to measure and process 1 to 16 input signals
  • to acquire autonomous time record of measured values
  • create alarm states
  • to perform other actions based on created alarms (audible, visual indication, controlling of relay outputs, sending SMS message, controlling of telephone dialer, sending of messages via several protocols of the Ethernet interface etc.)
  • to monitor on-line measured values and states
  • independent hysteresis setting, delay (for each channel separately)
  • setting up to four alarm conditions (for each channel separately)

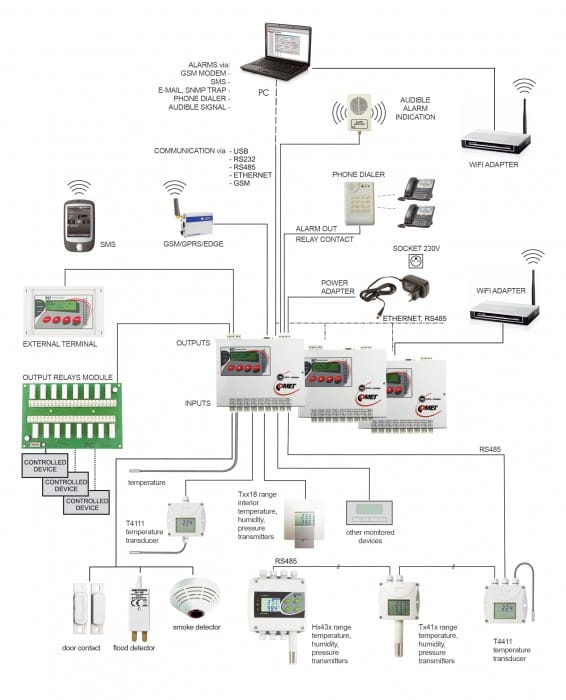

Common connectivity options

Monitoring system MS may be configured for almost any desired measurement application. Sensors can be wired to datalogger in star-like connection as well as in serial. Combination of both is also possible.

The monitoring system MS is characterized by a wide range of communication interfaces such as the RS232, RS485, USB, Ethernet and GSM or GPRS modem. Thanks to Wi-Fi routers several measuring systems MS can be wirelessly connected to a network.

  • modular inputs for temperature sensors Pt and Ni, thermocouples and thermistors, voltage and current, two-state events, frequency and pulses, resistance, sensors with RS485 output
  • memory for 500 000 records with automatic downloading to PC
  • alarm indication via integrated siren, e-mail, SMS and two-state output to control other devices
  • software for data analysis on PC

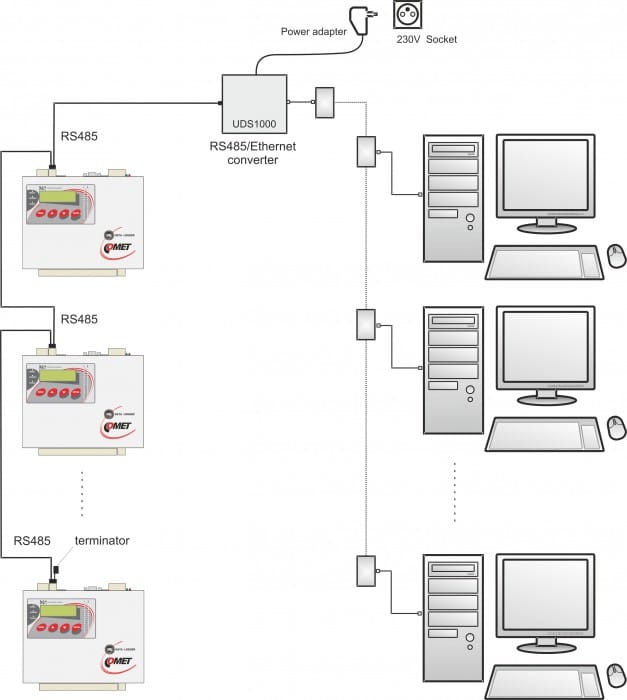

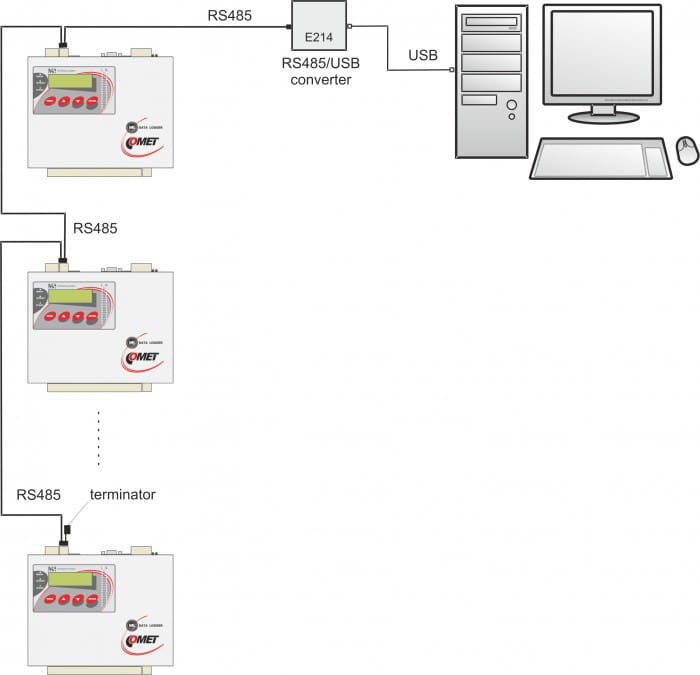

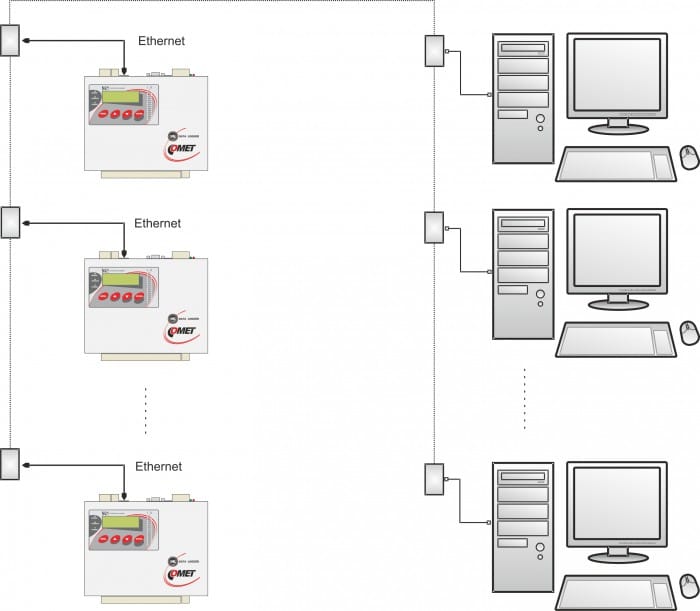

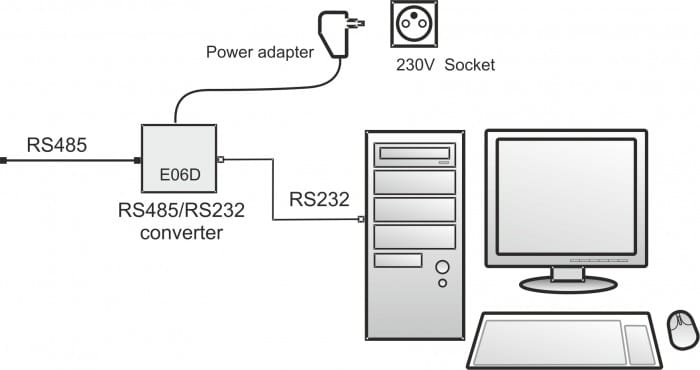

  • communication interface USB, RS232, relays, RS485 (Modbus RTU), ETHERNET (Modbus TCP, SOAP, etc.)



Optional accessories

Input modules

A0 input module for MS data logger dc current 4-20mA

A0 input module for MS data logger dc current 4-20mA

code M1001
A1 input module for MS data logger dc current 4-20mA

A1 input module for MS data logger dc current 4-20mA

code M1002
B0 input module for MS datalogger dc current 0-20mA

B0 input module for MS datalogger dc current 0-20mA

code M1003
B1 input module for MS datalogger dc current 0-1A

B1 input module for MS datalogger dc current 0-1A

code M1004
B2 input module for MS datalogger dc current 0-5A

B2 input module for MS datalogger dc current 0-5A

code M1005
C0 input module for MS datalogger ac current 0-20mA, galvanic isolated

C0 input module for MS datalogger ac current 0-20mA, galvanic isolated

code M1006
C1 input module for MS datalogger ac current 0-1A, galvanic isolated

C1 input module for MS datalogger ac current 0-1A, galvanic isolated

code M1007
C2 input module for MS datalogger ac current 0-5A, galvanic isolated

C2 input module for MS datalogger ac current 0-5A, galvanic isolated

code M1008
D0 input module for MS datalogger dc voltage 0-100mV

D0 input module for MS datalogger dc voltage 0-100mV

code M1009
D1 input module for MS datalogger dc voltage 0-1V

D1 input module for MS datalogger dc voltage 0-1V

code M1010
D2 input module for MS datalogger dc voltage 0-10V

D2 input module for MS datalogger dc voltage 0-10V

code M1011
E0 input module for MS datalogger ac voltage 0-100mV, galvanic isolated

E0 input module for MS datalogger ac voltage 0-100mV, galvanic isolated

code M1013
E1 input module for MS datalogger ac voltage 0-1V, galvanic isolated

E1 input module for MS datalogger ac voltage 0-1V, galvanic isolated

code M1014
E2 input module for MS datalogger ac voltage 0-10V, galvanic isolated

E2 input module for MS datalogger ac voltage 0-10V, galvanic isolated

code M1015
F input module for datalogger MS

F input module for datalogger MS

code M1017
J input module for MS datalogger RTD sensor Ni1000/6180 ppm

J input module for MS datalogger RTD sensor Ni1000/6180 ppm

code M1018
K input module for MS datalogger RTD sensor Pt100

K input module for MS datalogger RTD sensor Pt100

code M1019
K1 input module for MS datalogger RTD sensor Pt1000

K1 input module for MS datalogger RTD sensor Pt1000

code M1020
N input module for datalogger MS

N input module for datalogger MS

code M1021
O input module for datalogger MS

O input module for datalogger MS

code M1022
P input module for datalogger MS

P input module for datalogger MS

code M1023
Q input module for datalogger MS

Q input module for datalogger MS

code M1024
A1G input module for MS datalogger dc current 4-20mA, galvanic isolated

A1G input module for MS datalogger dc current 4-20mA, galvanic isolated

code M1025
B0G input module for MS datalogger dc current 0-20mA, galvanic isolated

B0G input module for MS datalogger dc current 0-20mA, galvanic isolated

code M1026
B1G input module for MS datalogger dc current 0-1A, galvanic isolated

B1G input module for MS datalogger dc current 0-1A, galvanic isolated

code M1027
B2G input module for MS datalogger dc current 0-5A, galvanic isolated

B2G input module for MS datalogger dc current 0-5A, galvanic isolated

code M1028
D0G input module for datalogger dc voltage 0-100mV, galvanic isolated

D0G input module for datalogger dc voltage 0-100mV, galvanic isolated

code M1029
D1G input module for MS datalogger dc voltage 0-1V, galvanic isolated

D1G input module for MS datalogger dc voltage 0-1V, galvanic isolated

code M1030
D2G input module for MS datalogger dc voltage 0-10V, galvanic isolated

D2G input module for MS datalogger dc voltage 0-10V, galvanic isolated

code M1031
FG input module for datalogger MS

FG input module for datalogger MS

code M1033
JG input module for MS datalogger RTD sensor Ni1000/6180 ppm, galvanic isolated

JG input module for MS datalogger RTD sensor Ni1000/6180 ppm, galvanic isolated

code M1034
KG input module for MS datalogger RTD sensor Pt100, galvanic isolated

KG input module for MS datalogger RTD sensor Pt100, galvanic isolated

code M1035
K1G input module for MS datalogger RTD sensor Pt1000, galvanic isolated

K1G input module for MS datalogger RTD sensor Pt1000, galvanic isolated

code M1036
NG input module for datalogger MS

NG input module for datalogger MS

code M1037
OG input module for datalogger MS

OG input module for datalogger MS

code M1038
PG input module for datalogger MS

PG input module for datalogger MS

code M1039
QG input module for datalogger MS

QG input module for datalogger MS

code M1040
S input module for datalogger MS

S input module for datalogger MS

code M1041
S1 input module for datalogger MS

S1 input module for datalogger MS

code M1042
SG input module for datalogger MS

SG input module for datalogger MS

code M1043
CTU counter input module for logger MS

CTU counter input module for logger MS

code M1044
CTK counter input module for logger MS

CTK counter input module for logger MS

code M1045
FU  input module for logger MS

FU input module for logger MS

code M1047
FK  input module for logger MS

FK input module for logger MS

code M1048
TG input module for datalogger MS

TG input module for datalogger MS

code M1053
T input module for datalogger MS

T input module for datalogger MS

code M1054
D4 input module for MS datalogger dc voltage 0-75V

D4 input module for MS datalogger dc voltage 0-75V

code M1055
D5 input module for MS datalogger  dc voltage -10 to +10V

D5 input module for MS datalogger dc voltage -10 to +10V

code M1056
D4G input module for MS datalogger dc voltage 0-75V, galvanic isolated

D4G input module for MS datalogger dc voltage 0-75V, galvanic isolated

code M1057
D5G input module for MS datalogger dc voltage -10 to +10V, galvanic isolated

D5G input module for MS datalogger dc voltage -10 to +10V, galvanic isolated

code M1058
E4 input module for MS datalogger ac voltage 0-50V, galvanic isolated

E4 input module for MS datalogger ac voltage 0-50V, galvanic isolated

code M1059
K3 input module for MS datalogger RTD sensor Pt1000

K3 input module for MS datalogger RTD sensor Pt1000

code M1060
RP input module for datalogger MS

RP input module for datalogger MS

code M1061

Power/Backup adapters

Ac/dc adapter 21V/1A/25W unstabilized

Ac/dc adapter 21V/1A/25W unstabilized

code A1759
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode

code A1940
Power supply 24Vdc for DIN 35mm rail

Power supply 24Vdc for DIN 35mm rail

code A5948
Uninterruptible power supply MIN-DC-UPS/24VDC/2

Uninterruptible power supply MIN-DC-UPS/24VDC/2

code A6963
Rechargeable battery module MINI-BAT/24DC/1,3AH

Rechargeable battery module MINI-BAT/24DC/1,3AH

code A7963
DIN rail 35mm/226mm lenght with screws

DIN rail 35mm/226mm lenght with screws

code MP035
Uninterruptible power supply unit AWZ 224

Uninterruptible power supply unit AWZ 224

code A6966
Rechargeable hermetic battery 12V/7,2Ah

Rechargeable hermetic battery 12V/7,2Ah

code A7966

Fixing MS

Holder for data logger mounting to DIN 35mm rail

Holder for data logger mounting to DIN 35mm rail

code MP012
Universal holders for data logger and output relays module

Universal holders for data logger and output relays module

code MP013
Side covers for cables

Side covers for cables

code MP027

Communication, convertors

Ethernet communication port (internal) for MS6R, MS6D

Ethernet communication port (internal) for MS6R, MS6D

code MP042
Converter USB/RS485 for MS5

Converter USB/RS485 for MS5

code MP022
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

code MP023
RS232 connector with terminals

RS232 connector with terminals

code MP030

GSM/Wi-Fi communication

GPRS/EDGE router ER75i RS232 set

GPRS/EDGE router ER75i RS232 set

code MP052
KIT-GSM with modem GSM

KIT-GSM with modem GSM

code KIT-GSM-M

External display

Terminal with display for MS55, MS6

Terminal with display for MS55, MS6

code MP016
External terminal for MS6x and MS55D dataloggers with housing and cable

External terminal for MS6x and MS55D dataloggers with housing and cable

code MP032
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10

Relay module

Output relays module

Output relays module

code MP018
Holders for output relays module mounting to DIN 35mm rail

Holders for output relays module mounting to DIN 35mm rail

code MP019
DIN rail 35 mm for output relays module with screws

DIN rail 35 mm for output relays module with screws

code MP020
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10

Other accessories

External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Power detector SP008

Power detector SP008

code SP008
Screwdriver for WAGO terminals 3.5mm

Screwdriver for WAGO terminals 3.5mm

code MP031
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30

Higher protection

MS55D datalogger in IP54 protection case with connected terminal at the lid

MS55D datalogger in IP54 protection case with connected terminal at the lid

code MP049
Watertight case with wall holders for MS logger, no cutout in the lid

Watertight case with wall holders for MS logger, no cutout in the lid

code MP033

Temperature Probes

Thermocouple "K" wire probe, GD1250, without connector

Thermocouple "K" wire probe, GD1250, without connector

Temperature range: -65 to 980°C
code GD1250-1/0
Thermocouple "K" wire probe, GD1250, without connector, 2 meters

Thermocouple "K" wire probe, GD1250, without connector, 2 meters

Temperature range: -65 to 980°C
code GD1250-2/0
Thermocouple "K" wire probe, GD1250, without connector, 3 meters

Thermocouple "K" wire probe, GD1250, without connector, 3 meters

Temperature range: -65 to 980°C
code GD1250-3/0
Thermocouple "K" wire probe, GD1250, without connector, 4 meters

Thermocouple "K" wire probe, GD1250, without connector, 4 meters

Temperature range: -65 to 980°C
code GD1250-4/0
Thermocouple "K" wire probe, GD260, without connector

Thermocouple "K" wire probe, GD260, without connector

Temperature range: -65 to 260°C
code GD260-1/0
Thermocouple "K" wire probe, GD260, without connector, 2 meters

Thermocouple "K" wire probe, GD260, without connector, 2 meters

Temperature range: -65 to 260°C
code GD260-2/0
Thermocouple "K" wire probe, GD260, without connector, 3 meters

Thermocouple "K" wire probe, GD260, without connector, 3 meters

Temperature range: -65 to 260°C
code GD260-3/0
Thermocouple "K" wire probe, GD260, without connector, 4 meters

Thermocouple "K" wire probe, GD260, without connector, 4 meters

Temperature range: -65 to 260°C
code GD260-4/0
Thermocouple "K" wire probe, GD700, without connector

Thermocouple "K" wire probe, GD700, without connector

Temperature range: -65 to 700°C
code GD700-1/0
Thermocouple "K" wire probe, GD700, without connector, 2 meters

Thermocouple "K" wire probe, GD700, without connector, 2 meters

Temperature range: -65 to 700°C
code GD700-2/0
Thermocouple "K" wire probe, GD700, without connector, 3 meters

Thermocouple "K" wire probe, GD700, without connector, 3 meters

Temperature range: -65 to 700°C
code GD700-3/0
Thermocouple "K" wire probe, GD700, without connector, 4 meters

Thermocouple "K" wire probe, GD700, without connector, 4 meters

Temperature range: -65 to 700°C
code GD700-4/0
Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105
Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108
Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 350°C
code SN247
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature range: -50 to 350°C
code SN248
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature range: -50 to 350°C
code SN249
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256

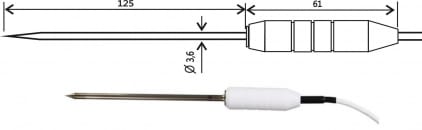

Temperature probe 2061-250/0, without connector

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C
code SN147
Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C
code SN148
Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C
code SN151
Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C
code SN156
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165
Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166
Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -30 to 200°C
code SN178
Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature range: -30 to 200°C
code SN179
Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature range: -30 to 200°C
code SN180
Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature range: -30 to 200°C
code SN181
Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182
Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200
Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201
Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202
Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203
Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Stick-in probe 2091-250/0, without connector, cable 2 meters

Stick-in probe 2091-250/0, without connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211
Stick-in probe 2091-250/0, without connector, cable 5 meters

Stick-in probe 2091-250/0, without connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212
Stick-in probe 2091-250/0, without connector, cable 10 meters

Stick-in probe 2091-250/0, without connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214

Temperature range: -30 to 80°C
code
Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232
Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233
Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240
Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241
Temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0
Extension cable thermocouple "K" female connector, 2 meters

Extension cable thermocouple "K" female connector, 2 meters

code SNP06/0
Extension cable thermocouple "K" female connector, 3 meters

Extension cable thermocouple "K" female connector, 3 meters

code SNP07/0
Extension cable thermocouple "K" female connector, 4 meters

Extension cable thermocouple "K" female connector, 4 meters

code SNP08/0
Extension cable thermocouple "K" female connector, 5 meters

Extension cable thermocouple "K" female connector, 5 meters

code SNP09/0
Extension cable thermocouple "K" female connector, 6 meters

Extension cable thermocouple "K" female connector, 6 meters

code SNP10/0
Extension cable thermocouple "K" female connector, 7 meters

Extension cable thermocouple "K" female connector, 7 meters

code SNP11/0
Extension cable thermocouple "K" female connector, 8 meters

Extension cable thermocouple "K" female connector, 8 meters

code SNP12/0
Extension cable thermocouple "K" female connector, 9 meters

Extension cable thermocouple "K" female connector, 9 meters

code SNP13/0
Extension cable thermocouple "K" female connector, 10 meters

Extension cable thermocouple "K" female connector, 10 meters

code SNP14/0
Extension cable thermocouple "K" female connector, 11 meters

Extension cable thermocouple "K" female connector, 11 meters

code SNP15/0
Extension cable thermocouple "K" female connector, 12 meters

Extension cable thermocouple "K" female connector, 12 meters

code SNP16/0
Extension cable thermocouple "K" female connector, 13 meters

Extension cable thermocouple "K" female connector, 13 meters

code SNP17/0
Extension cable thermocouple "K" female connector, 14 meters

Extension cable thermocouple "K" female connector, 14 meters

code SNP18/0
Extension cable thermocouple "K" female connector, 15 meters

Extension cable thermocouple "K" female connector, 15 meters

code SNP19/0

Monitoring software

Comet Database

Comet Database

code CDB
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Software for COMET Monitoring Systems

Software for COMET Monitoring Systems

code SWR003
