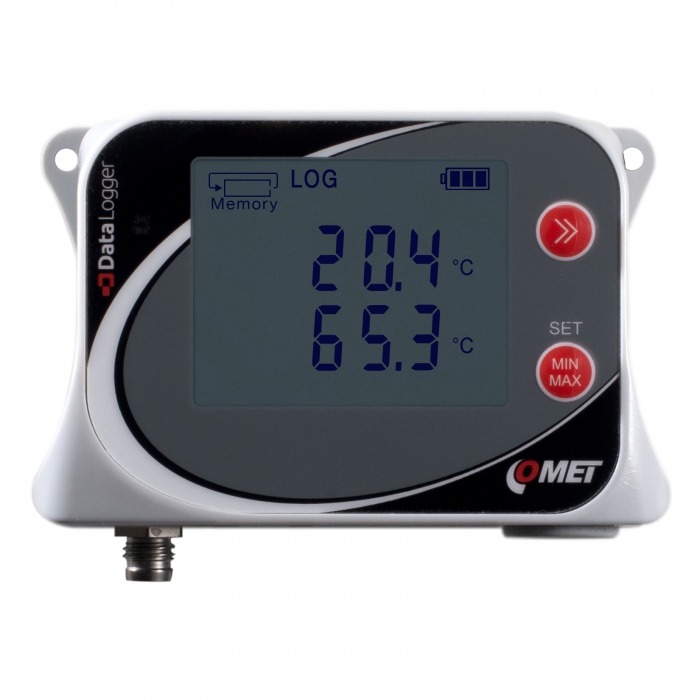

Dual channel temperature data logger for one external Pt1000 probe with internal temperature sensor

Datalogger is designed to record temperature from one external Pt1000 probe and internal temperature sensor.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U0122
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +70 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C

Accuracy ±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels internal temperature + 1x external temperature probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval adjustable from 10 s to 24 h

Display and alarm refresh adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power lithium battery 3.6 V, size AA

Protection class IP67

Dimensions 61 x 93 x 32 mm

Weight (including batteries) approx. 120 g

Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C

code SN104E

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C

code SN105E

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C

code SN108E

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C

code SN113E

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C

code SN164E

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN165E

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN166E

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN167E

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C

code SN168E

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN169E

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C

code SN170E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C

code SN171

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN175E

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C

code SN178E

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN179E

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN180E

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN181E

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C

code SN182E

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C

code SN183E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN185E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN186E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN187E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN188E

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN199E

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN200E

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN201E

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN202E

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C

code SN203E

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C

code SN204E

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C

code SN210E

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C

code SN211E

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C

code SN212E

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C

code SN213E

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN232E

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN233E

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN234E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C

code SN239E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C

code SN240E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C

code SN241E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C

code SN242E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

code SN247E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

code SN248E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

code SN249E

Temperature probe Pt1000TG68/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C

code SN251E

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C

code SN252E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C

code SN263E

Lithium battery 3,6V/AA

code A4203

USB-C cable, 1 meter

code MP053

SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

code Silex

Wall holder for datalogger

code LP100

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

Comet Database

code CDB

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
