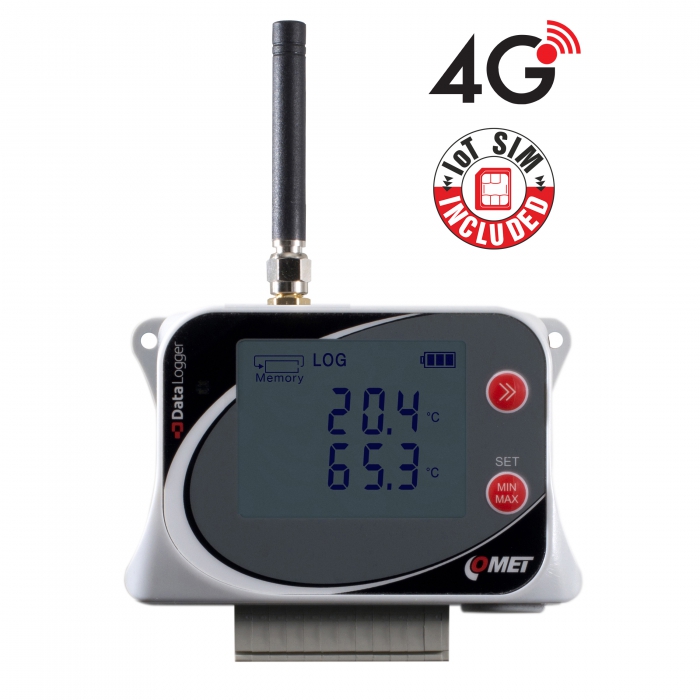

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem and Flat Rate SIM Card

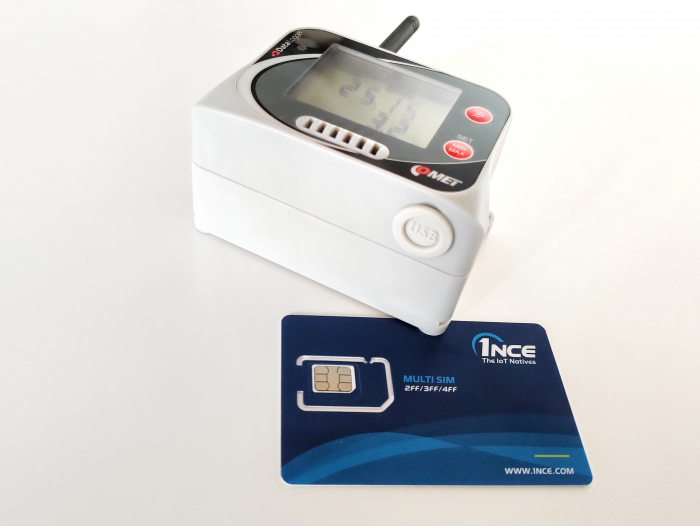

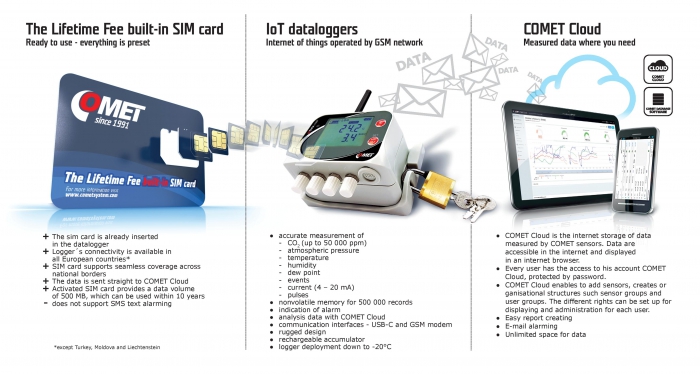

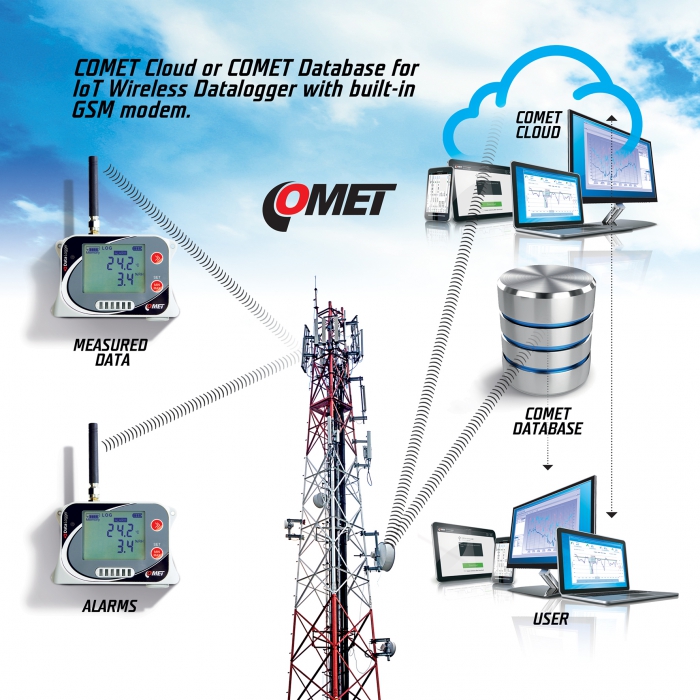

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

GSM Datalogger is designed to record temperature from four external Pt1000 probes connected to the terminal board. In case of exceeded set limits e-mail is sent, SMS and JSON messages can be sent via 4G data connection.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U0141TGsim
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C

Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GSM MODEM PARAMETERS

LTE Cat 1 LTE FDD/GSM/GPRS/EDGE

Supported network types GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels 4x external temperature probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval to the internal memory adjustable from 1 second to 24 hours

Recording interval to the COMET Cloud from 5 minutes

Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh

Protection class IP20

Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm

Weight (including batteries) approx. 270 g

Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C

code SN104

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C

code SN105

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C

code SN108

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C

code SN113

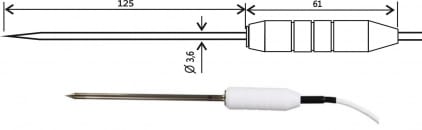

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C

code SN147

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C

code SN148

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C

code SN151

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C

code SN156

Temperature probe Pt1000TG7/0, without connector
