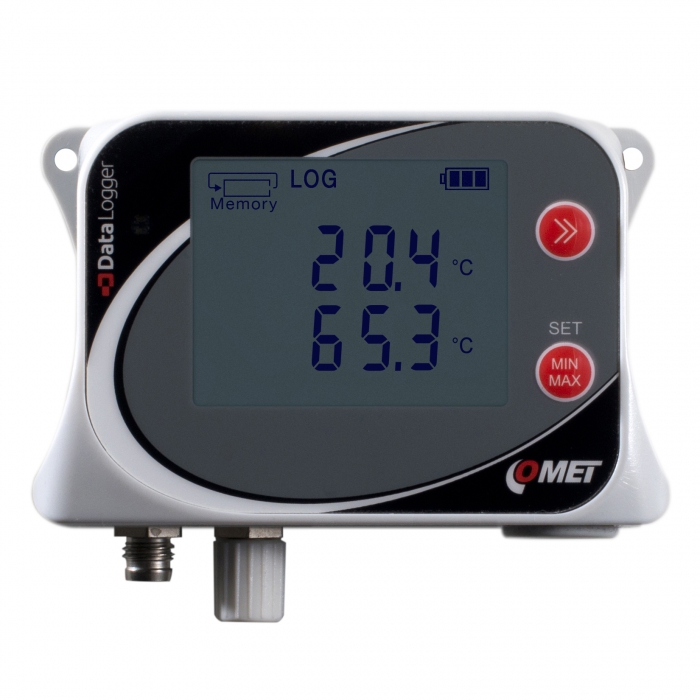

Temperature data logger for two external Pt1000 probes

Datalogger is designed to record temperature from two external Pt1000 probes.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U0121
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C
Channels 2x external temperature probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Lithium battery 3.6 V, size AA
Protection class IP67
Dimensions 61 x 93 x 32 mm
Weight (including batteries) approx. 130 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C
code SN104E
Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105E
Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108E
Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113E
Temperature probe Pt1000TG7/E, ELKA connector

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C
code SN164E
Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165E
Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166E
Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167E
Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168E
Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169E
Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170E
Ambient temperature probe, 200-80/E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C
code SN171
Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175E
Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178E
Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179E
Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180E
Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181E
Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182E
Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188E
Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199E
Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200E
Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201E
Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202E
Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203E
Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204E
Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210E
Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211E
Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212E
Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213E
Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232E
Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233E
Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C
code SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273E

Lithium battery 3,6V/AA

Lithium battery 3,6V/AA

code A4203

Accredited temperature calibration

Accredited temperature calibration

code SLU001

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

COMET Database

COMET Database

code CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

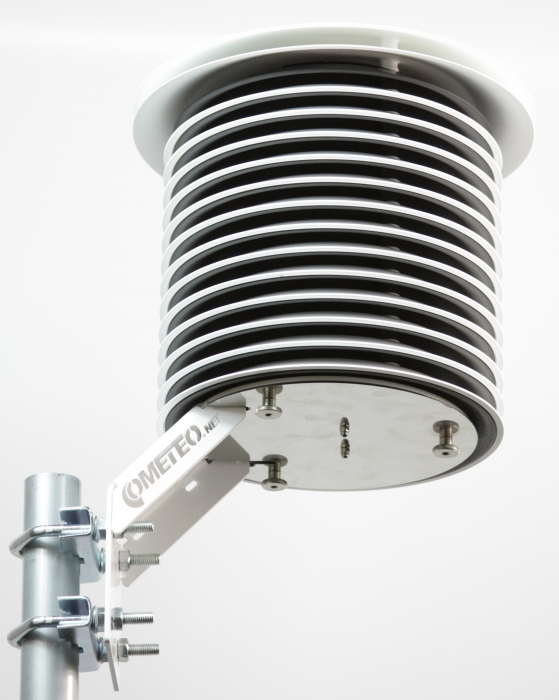

COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.34 MB
download-icon Quick Start Manual
1.29 MB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
95.35 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon Catalogue Sheets - COMET Data Loggers
2.36 MB

Related products

COMET Database

COMET Database

code CDB
IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

code U0141M
Temperature data logger for one external Pt1000 probe

Temperature data logger for one external Pt1000 probe

code U0111
Dual channel temperature data logger for one external Pt1000 probe with internal temperature sensor

Dual channel temperature data logger for one external Pt1000 probe with internal temperature sensor

code U0122
Temperature data logger for four external Pt1000 probes

Temperature data logger for four external Pt1000 probes

code U0141
Temperature data logger with built-in sensor

Temperature data logger with built-in sensor

code U0110
Temperature and humidity data logger with built-in sensors

Temperature and humidity data logger with built-in sensors

code U3120
COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

Reference

Animal Transportation with Temperature Monitoring & Animal Rescue Ambulance

Animal Transportation with Temperature Monitoring & Animal Rescue Ambulance

Type of application: Monitoring during transport Healthcare and Laboratory Agriculture

COMET measures in Antarctica

COMET measures in Antarctica

Type of application: Industry Healthcare and Laboratory Server rooms and data centers Agriculture Weather monitoring

Temperature measurement in organic poultry farming

Temperature measurement in organic poultry farming

Type of application: Agriculture

Case Study - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

Case Study - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

Type of application: Monitoring during transport SOHO (Small Office and Home Office) Industry Healthcare and Laboratory Building Management - HVAC Server rooms and data centers Agriculture Culture

Temperature and Relative Humidity measuring in PHARMACIES and DRUG STORES

Temperature and Relative Humidity measuring in PHARMACIES and DRUG STORES

Type of application: SOHO (Small Office and Home Office) Industry Healthcare and Laboratory Building Management - HVAC

Temperature monitoring of the construction layers of the sleeper subsoil

Temperature monitoring of the construction layers of the sleeper subsoil

Type of application: Industry Building Management - HVAC Agriculture

COMET Dataloggers used for measuring in shipping containers

COMET Dataloggers used for measuring in shipping containers

Type of application: Monitoring during transport Industry Building Management - HVAC

Monitoring of microclimate conditions in underground systems of mammals

Monitoring of microclimate conditions in underground systems of mammals

Type of application: Agriculture

With COMET to space

With COMET to space

Type of application: Monitoring during transport Healthcare and Laboratory Weather monitoring

Transport of blood products and medical equipment

Transport of blood products and medical equipment

Type of application: Monitoring during transport Healthcare and Laboratory

Speleoklub Minotaurus

Speleoklub Minotaurus

Type of application: Building Management - HVAC Agriculture Culture

Balloon measurements of air pollution

Balloon measurements of air pollution

Type of application: Industry Building Management - HVAC

Using og temperature data logger S0110 in speleological practice

Using og temperature data logger S0110 in speleological practice

Type of application: Building Management - HVAC Agriculture Culture

Meteorological measurements for the purpose of avalanche prevention

Meteorological measurements for the purpose of avalanche prevention

Type of application: Building Management - HVAC Agriculture

Humidity monitoring in family houses

Humidity monitoring in family houses

Type of application: Building Management - HVAC

Animal Transportation with Temperature Monitoring

Animal Transportation with Temperature Monitoring

Type of application: Monitoring during transport Healthcare and Laboratory Agriculture

Prague Castle

Prague Castle

Type of application: Building Management - HVAC Server rooms and data centers Culture

Temelinska pharmacy - Sumperk

Temelinska pharmacy - Sumperk

Type of application: Monitoring during transport Healthcare and Laboratory

Masaryk University in Brno

Masaryk University in Brno

Type of application: Industry Building Management - HVAC Weather monitoring

U0141 - video

Monitorinig during transport - video
